Applications of FRP Integrated Prefabricated Pump Stations in Municipal, Industrial and Rainwater Projects

An FRP integrated prefabricated pump station consolidates the tank, pumps, pipes, grating, and control system into one factory-built, corrosion-proof unit that lifts sewage, industrial wastewater, and rainwater from low-lying areas where gravity drainage cannot reach. This article maps where these stations are used, why the FRP body beats concrete, and how a manufacturer like Weitong FRP builds them for municipal, industrial, and rainwater projects.

What an FRP Integrated Pump Station Is?

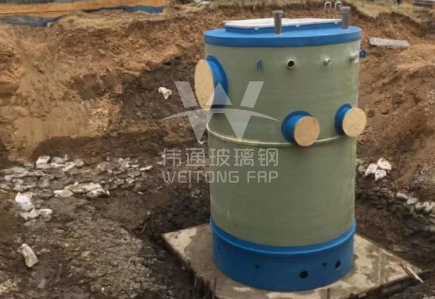

The station uses a high-strength FRP or GRP cylinder made by filament winding, with submerged pumps, inlet and outlet pipes, a grating or screening system, and an integrated control cabinet inside. A liquid-level sensor starts and stops the pumps automatically, so the unit runs without permanent on-site staff.

The bottom is usually shaped for self-cleaning to reduce sludge buildup, and the top carries a sealed access cover with ventilation. Because the body is integrally molded with no seams, it does not leak the way a joints-rich concrete structure can.

Municipal and Rainwater Drainage

Cities use these stations where gravity sewers cannot cover the terrain. Typical cases include:

1. Low-lying road sections that flood during heavy rain.

1. Stormwater collection and sponge-city runoff control.

1. Old municipal pipe-network upgrades where a new lift point is needed.

1. Basement and district drainage in new residential and commercial builds.

Because the unit is buried, only the inspection hatch shows above ground, leaving space for greening or roads. Construction time is a fraction of a cast-in-place concrete station.

Industrial and Chemical Wastewater

Factories need reliable lift points for process and treatment water. Electroplating, pharmaceutical, paper, and power plants move aggressive media that attack concrete and steel. An FRP body resists acid, alkali, and salt over a long service life.

A clear reference is the desulfurization wastewater zero-discharge projects Weitong FRP has supplied to power plants such as Huaneng Shidongkou and Handan Power Plant. In those environments, the corrosion-proof FRP structure is not a convenience but a requirement for continuous operation.

Rural, Commercial and Remote Sites

Smaller stations serve villages, scenic areas, and sites without stable power. The same automatic control with remote monitoring works where a full crew is impractical. Farms, hospitals, and camps use packaged units for sewage and land irrigation supply.

The modular design also fits temporary or expandable sites, because a standard-diameter unit can be specified from stock and later supplemented.

Why FRP Beats Concrete

Compared with traditional concrete pump stations, the FRP integrated unit offers:

• No seepage: integral molding removes joint leakage paths.

• Corrosion proof: no rust removal or re-coating over the service life.

• Fast build: factory prefabrication cuts on-site work to excavation, setting, and pipe connection.

• Small footprint: fully buried, leaving surface land free.

• Long life: FRP bodies commonly serve 30 years and more in buried duty.

• Lower lifecycle cost: less maintenance and less energy loss from leaks.

How Weitong FRP Builds the Station

Weitong FRP produces the integrated prefabricated pump station as part of its tank range, alongside large on-site storage tanks and other corrosion equipment. The filament-winding process, BPO curing oven, and high-pressure test platform support consistent cylinder quality. The plant is ISO 9001, ISO 14001, and ISO 45001 certified and exports to dozens of countries across Europe, the Middle East, and Asia.

Buyers can review the FRP integrated prefabricated pump station product page for structure and configuration, and the large fiberglass on-site storage tanks page for related corrosion equipment. The chemical industry application page and the Huaneng project case give environment-matched proof points.

In Short

FRP integrated prefabricated pump stations fit municipal drainage, rainwater control, industrial wastewater, and remote sites where gravity flow fails. The one-piece FRP body removes leakage and corrosion problems of concrete, shortens construction, and runs automatically. Weitong FRP builds these stations with certified winding production and real power-plant project references.

People Also Ask

• Can an FRP pump station handle acid wastewater? Yes, with vinyl ester or phenolic resin specified for the media concentration and temperature.

• How long does an FRP pump station last? Buried FRP units commonly serve 30 years and more with correct resin selection.

• Is it cheaper than concrete? Upfront varies by size, but lifecycle cost is usually lower due to less maintenance and no leakage repair.

• Does it need a control room? No. The integrated cabinet supports automatic start-stop and remote monitoring.

FAQ

Q1: Where are FRP integrated pump stations most used?

A1: They serve municipal stormwater and sewage lift, industrial wastewater in corrosive plants, rural and scenic sites, and any low-lying area where gravity drainage cannot reach.

Q2: Why choose FRP over concrete?

A2: The integrally wound FRP body does not leak at joints, resists corrosion without recoating, installs far faster, and buries with a small surface footprint, lowering lifecycle cost.

Q3: Can it manage aggressive chemical media?

A3: Yes, when the resin system is matched to the chemical, concentration, and temperature. Vinyl ester or phenolic resins are common for aggressive duty.

Q4: Does the station run unattended?

A4: Yes. A liquid-level sensor and control cabinet start and stop the pumps automatically, with fault alarms and remote monitoring available.

Q5: What reference projects does Weitong FRP have?

A5: Weitong FRP has supplied FRP equipment for power-plant desulfurization wastewater zero-discharge projects, including Huaneng Shidongkou and Handan Power Plant, demonstrating corrosion-duty performance.
