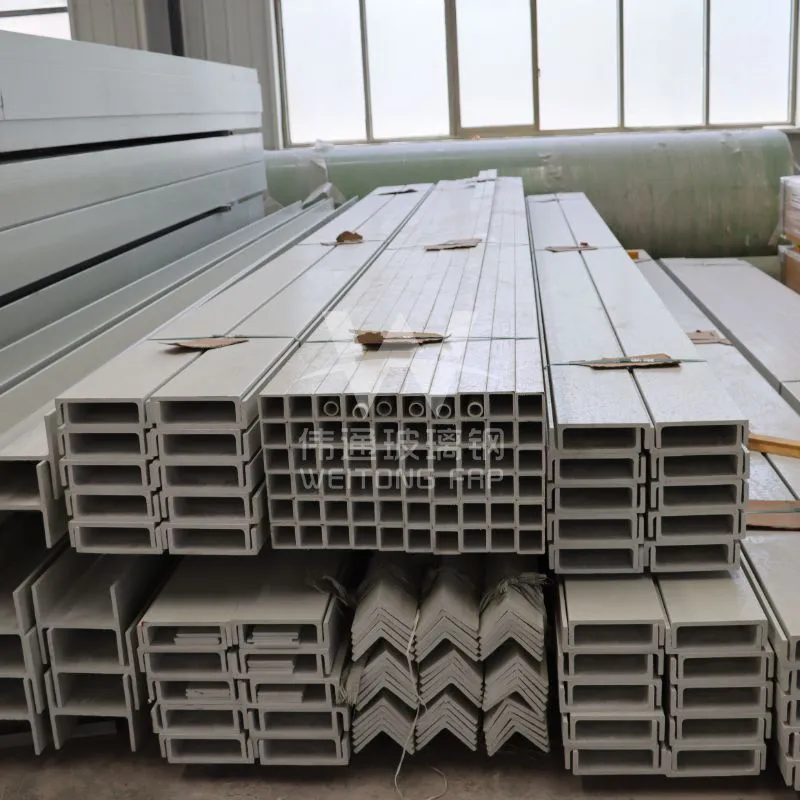

Fiberglass Angle Steel and Channel Steel

I. Fiberglass Angles

1. Specifications: Typically expressed as "side width x side width x thickness," for example, 50mm x 50mm x 5mm. Specifications range widely, from small (e.g., 20x20x3) to large (e.g., 100x100x10).

2. Main Applications

● Due to its L-shaped structure, it is ideal for use as reinforcement, support structures, and frames.

● Structural Frames: Support frames used to assemble equipment platforms, walkways, and ladders.

● Reinforcement Ribs: Attached to fiberglass sheets or tanks, they act as reinforcement, significantly increasing overall structural strength.

● Supports: Used as brackets or supports for cable trays and pipelines in corrosive environments.

● Electrical Applications: Used as supports for non-conductive equipment and insulating structural components.

About Structural FRP Fiberglass Angle

Weitong FRP fiberglass angles provide lightweight, corrosion-resistant support for walkways, platforms, equipment frames, and other structural assemblies. Their low maintenance requirements make them a practical choice for damp or chemically aggressive environments.

Made with fiberglass reinforcement and thermosetting polyester or vinyl ester resin, these structural profiles combine strength with electrical insulation. The resin system can be selected to suit the service environment, while a surface veil helps protect the underlying fibers and improve corrosion resistance. UV protection should be specified for outdoor applications.

FRP angles are available in different leg dimensions and wall thicknesses to accommodate a range of structural requirements. Selecting the appropriate profile depends on the design load, support spacing, connection details, and exposure conditions. Contact Weitong FRP for dimensions, weight per unit length, and specifications for your project.

II. Fiberglass Channel Steel

1. Specifications: Usually expressed as "height x leg width x waist thickness," for example, 50mm x 30mm x 5mm.

2. Main Applications

● The structural properties of channel steel make it well suited for bearing bending stresses and are commonly used for load-bearing beams and edge reinforcement.

● Load-bearing beams: These are the primary load-bearing structures for assembling fiberglass grating floors and operating platforms. The grating panels are placed directly on the channel steel beams.

● Edge reinforcements: These serve as safety guards on the edges of platforms and grating panels, adding strength and aesthetics.

● Guide rails and runners: They serve as guide rails for equipment in corrosive environments.

Advantages of FRP Channels

High Strength-to-Weight Ratio: FRP channels provide exceptional strength with less weight, which is crucial in industries like aerospace and automotive where weight reduction is a key factor.

Corrosion Resistance: Unlike metal channels, FRP channels do not corrode, making them ideal for use in chemical plants, marine environments, and other corrosive settings.

UV Resistance: FRP channels are designed to withstand ultraviolet radiation, ensuring their longevity and performance in outdoor applications.

Low Deformation Rate: FRP channels maintain their shape and structural integrity under load, offering superior performance compared to materials that deform easily.

Customization: FRP channels can be manufactured in various sizes and shapes to meet specific project requirements, providing design flexibility.

When selecting, it is necessary to determine the specific specifications and the type of resin used (such as vinyl ester resin with better corrosion resistance) based on the actual load-bearing requirements, type and concentration of the corrosive medium.
