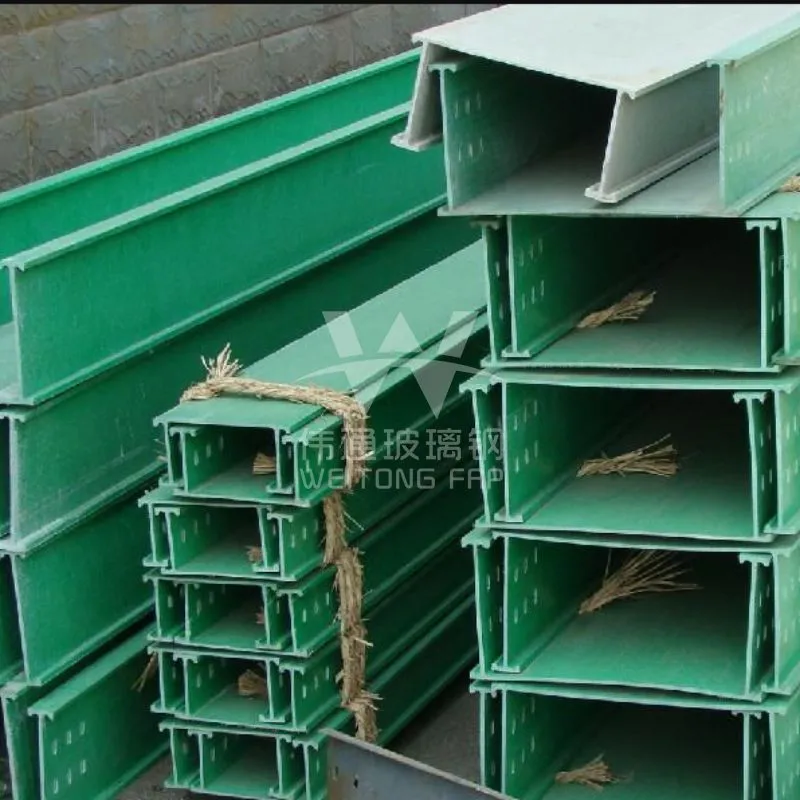

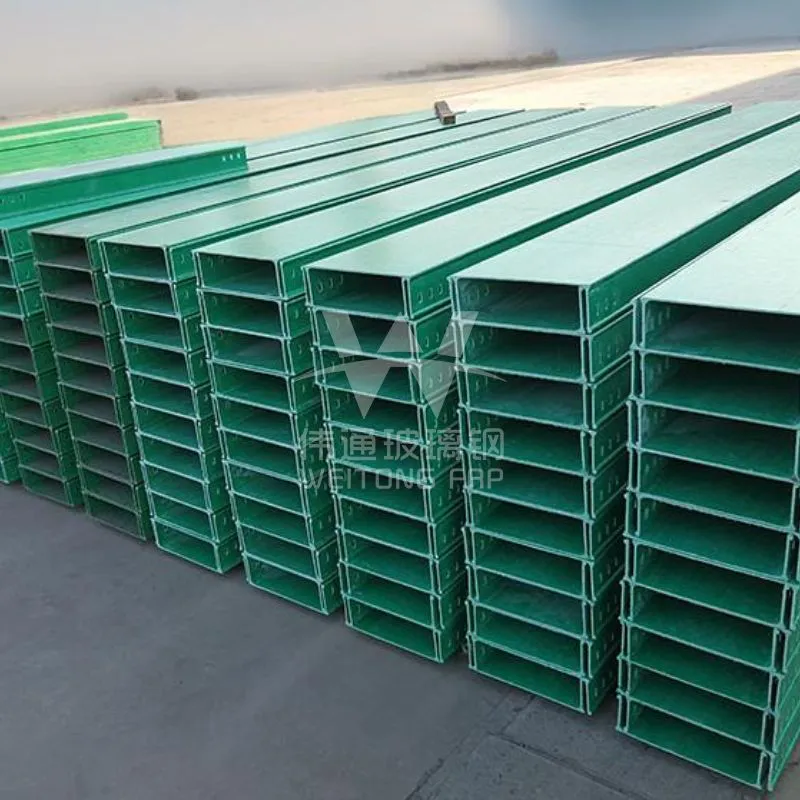

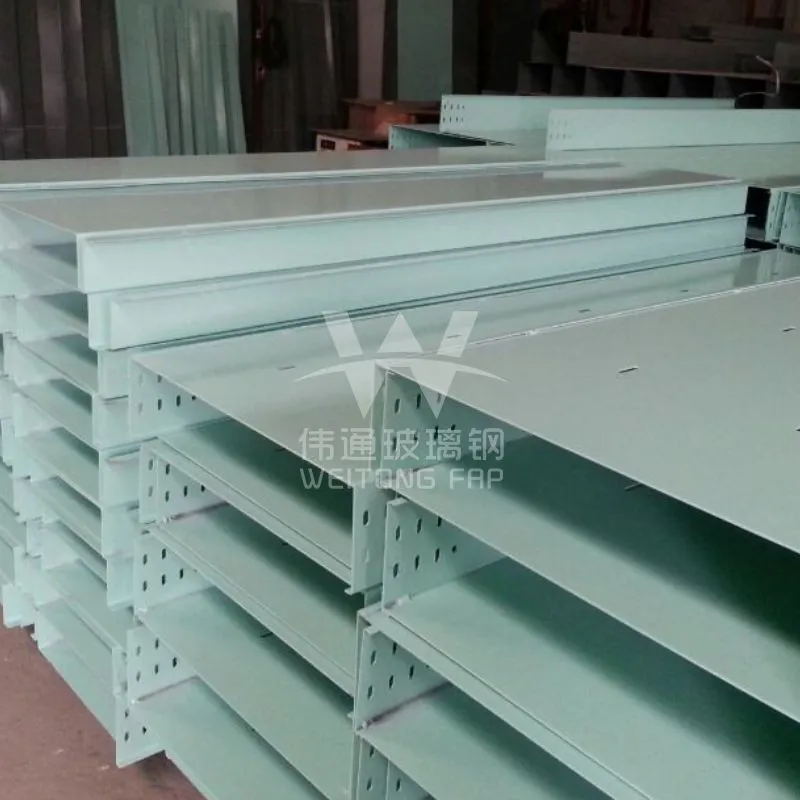

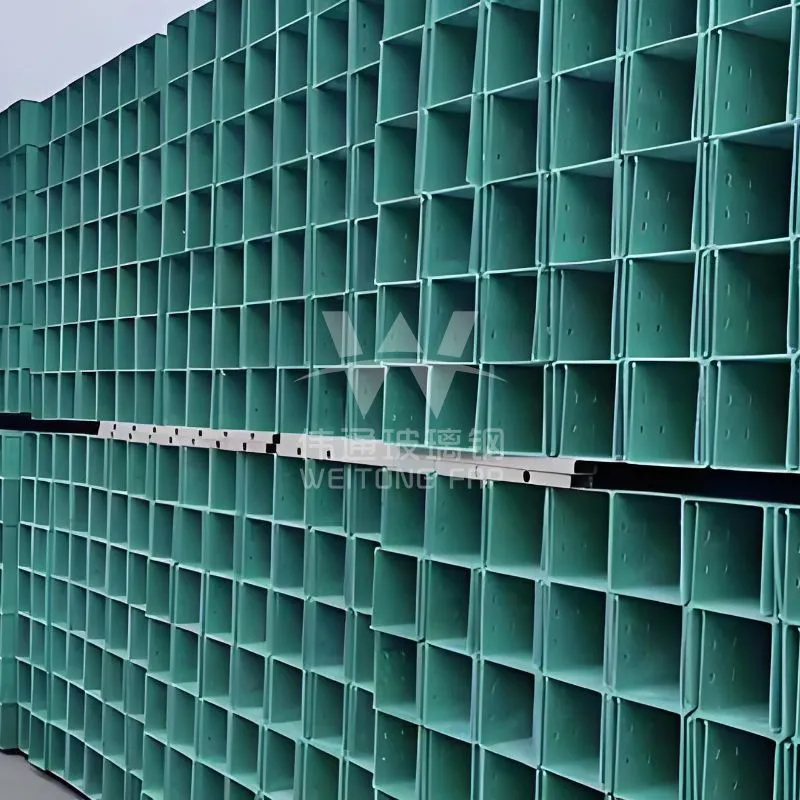

Fiberglass Cable Tray

Fiberglass cable trays are widely used in power, communications, and network cabling applications, supporting and protecting wires and cables. They are also known as fiberglass cable troughs or composite cable trays.

Inquire Now + Next Products +

Main Functions Include Main Application Areas Comparison with Other Cable Tray Materials

Support and Load Carrying: They provide solid support for wires and cables and transfer their loads to the supporting structure.

Management and Protection: They neatly organize and organize the complex network of cables within the tray, making them easier to identify and maintain. They also protect the cables from mechanical damage, dust, and moisture.

Spatial Isolation and Fire Protection: They separate cables from different systems, such as high-voltage and low-voltage systems, to reduce mutual interference. Some types are also flame-retardant and fire-resistant.

Key Performance Indicators

1. Load Class: According to standards (such as JB/T 10216), they are classified as A (light), B (medium), C (heavy), and D (extra heavy). The selection should be based on the weight and number of cables.

2. Fire Rating: They are classified as standard (F2) and flame-retardant (F1). 3. Protection Level (IP Code): such as IP54 (dustproof and splashproof) and IP66 (strong water jets). Trough-type cable trays typically meet IP66.

4. Oxygen Index: A measure of a material's flame retardancy. The higher the oxygen index, the harder it burns. Flame-retardant cable trays are typically required to have an oxygen index greater than 32.

Main Application Areas

Corrosive Environments

Chemical plants, power plant desulfurization areas, coastal platforms, desalination plants, and electroplating plants.

Rail Transit

Tunnels and platforms in subways and high-speed rail stations.

Municipal Engineering

Integrated pipeline corridors and sewage treatment plants.

Communications Networks

Data centers and base stations.

Clean Areas

Electronics factories, hospitals, and food processing plants.

Comparison with Other Cable Tray Materials

Features	Fiberglass Bridge	Galvanized Steel Bridge	Aluminum Alloy Bridge
Corrosion Resistance	Excellent	Poor, prone to rust if coating is damaged	Good, but not resistant to chloride ions and strong alkalis
Weight	Light	Heavy	Light
Strength	High	High	Medium
Conductivity	Insulation	Conductive, requires grounding	Conductive, requires grounding
Cost	Medium	Low	High
Applicable Scenarios	Highly corrosive, humid, and high insulation requirements	Dry indoor environments, cost-sensitive	Lightweight, low corrosion, and high aesthetic requirements

Glass fiberglass cable trays, with their unique advantages of corrosion resistance, lightweight and high strength, electrical insulation, and flame retardancy, are an irreplaceable and optimal choice for specific applications. They represent the trend toward high-performance, long-life, and maintenance-free cable systems. When selecting, clarifying the use environment and technical requirements and choosing the appropriate type and grade are the key to ensuring the safe, reliable and long-term operation of the cable system.
