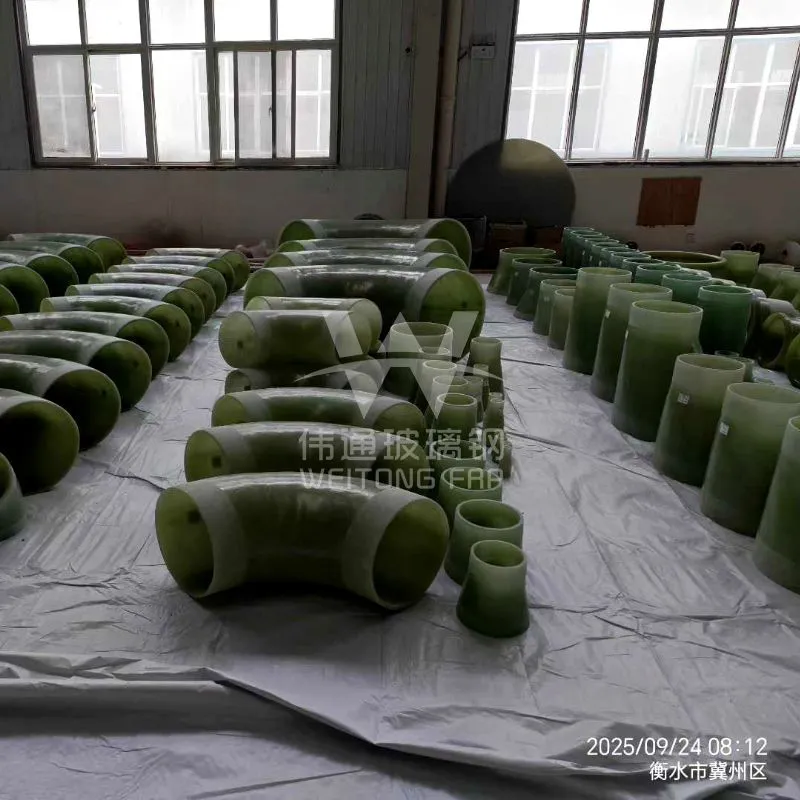

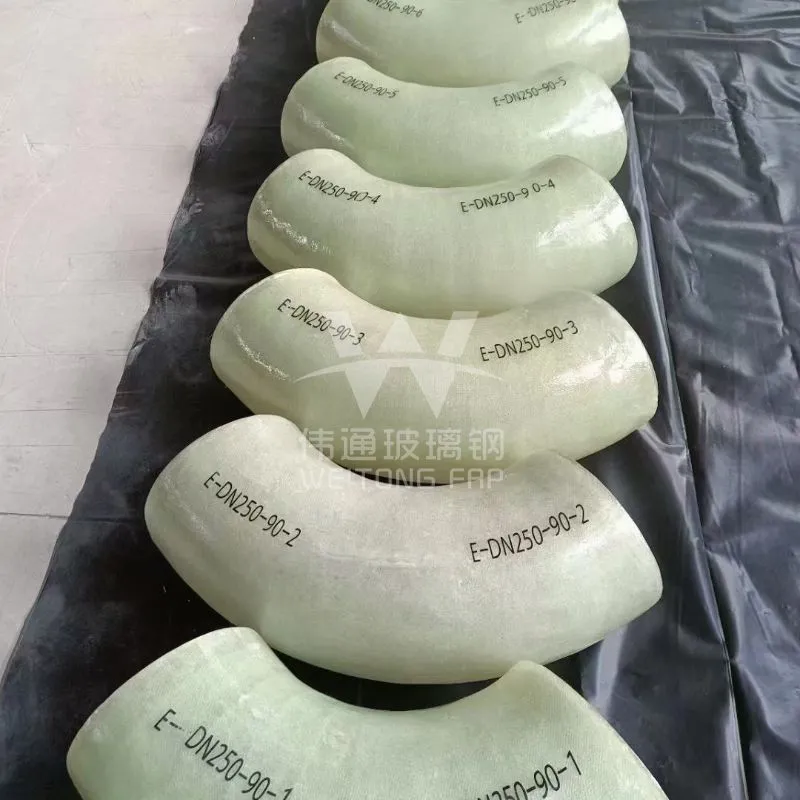

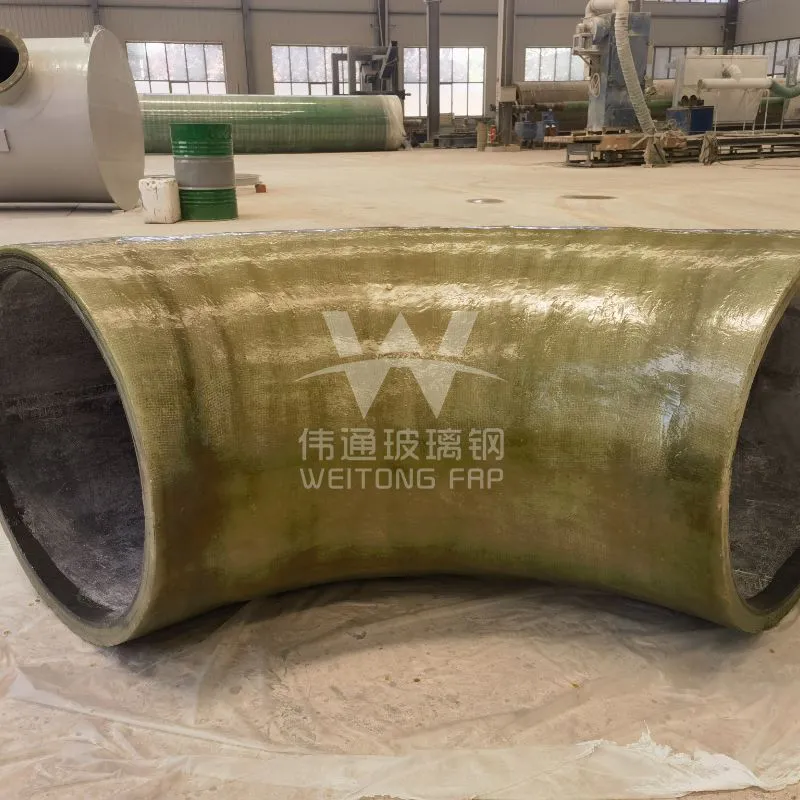

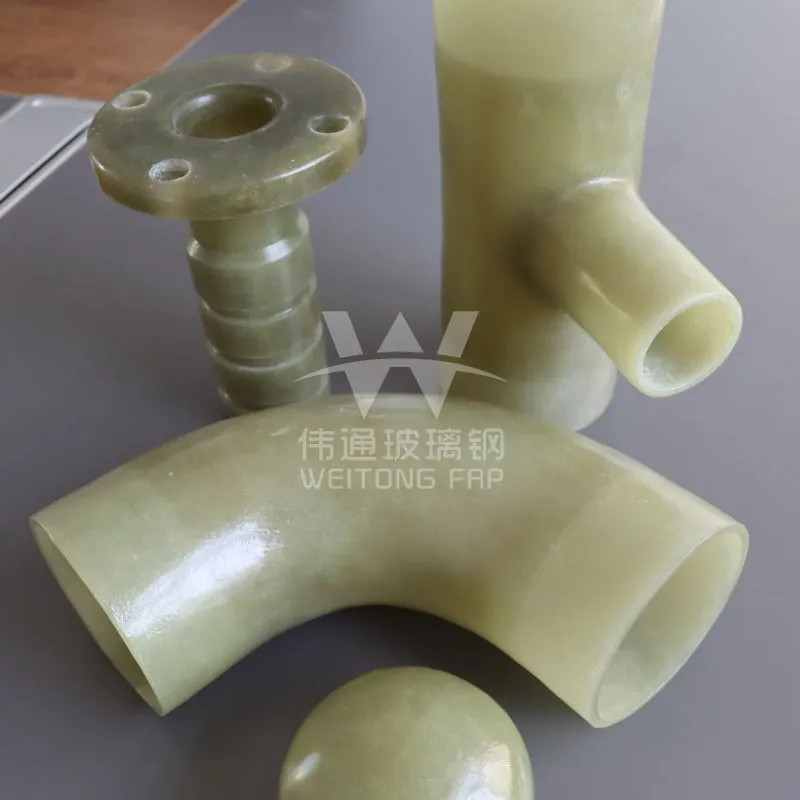

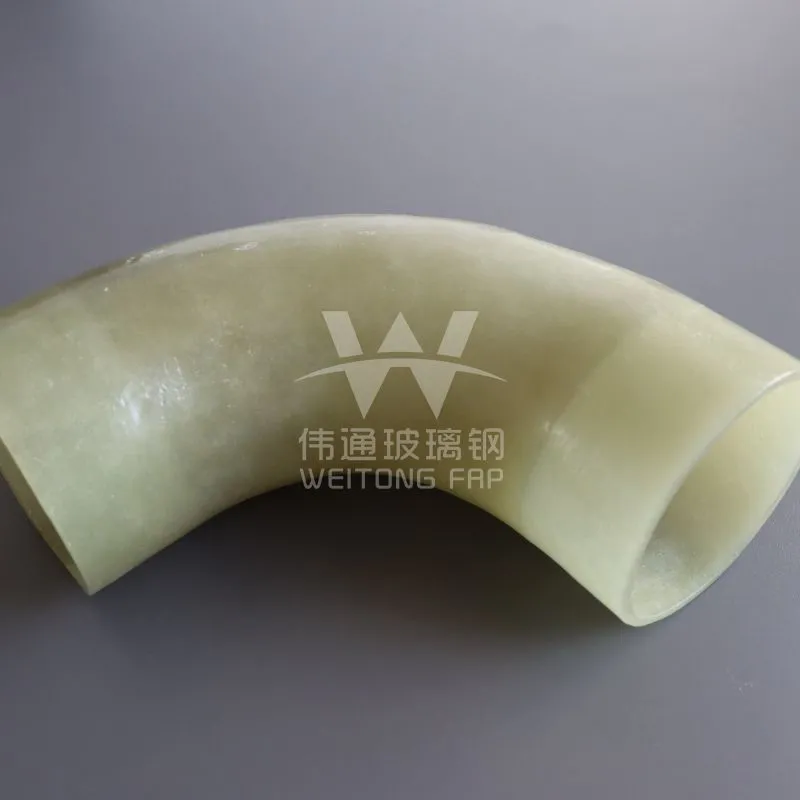

Fiberglass Elbow

Fiberglass elbows are key fittings used to change the direction of pipes in fiberglass piping systems. Their performance and reliability directly impact the smoothness and safety of the entire piping system.

Inquire Now + Next Products +

Main Functions Key Parameters and Specifications Main Application Areas

Main Functions

Direction Change

Enables piping systems to bypass obstacles and adapt to complex layouts and terrain.

Reduced Flow Resistance

Compared with methods such as right-angle tees, elbows with appropriately designed angles can significantly reduce flow resistance, energy loss, and erosion wear.

Absorbing Thermal Expansion and Contraction

In systems with large temperature fluctuations, elbows can utilize their inherent elastic deformation to absorb some of the thermal stress in the pipe.

Key Parameters and Specifications

1. Bend Angle

The most common standard angles are 45° and 90°. Other angles, such as 11.25°, 22.5°, and 60°, can also be customized according to project requirements.

2. Bend Radius

This is a key parameter that measures the degree of curvature of an elbow and is generally categorized as follows:

Long Radius Elbow: Bend Radius R = 1.5D (D is the nominal pipe diameter). This is the most commonly used type, offering low flow resistance and minimal wear.

Short-radius elbow: Bend radius R = 1.0D. Used in installation spaces with limited space, but with greater flow resistance and wear.

D represents the nominal diameter of the pipe. For example, for a DN200 pipe, the bend radius of a long-radius elbow is R = 1.5 * 200 = 300mm.

3. Pressure rating:

Matches the pipe. Common pressure ratings include PN 0.6, PN 1.0, PN 1.6, and PN 2.5 MPa.

4. Connection method:

Socket-and-spigot joint: The most commonly used method involves creating a socket at each end of the elbow, inserting a straight pipe, and bonding them using a specialized adhesive for excellent sealing.

Flange connection: The elbow has flanges at both ends (wrap-around or adhesive-bonded) and is bolted to the pipe or equipment for easy disassembly.

Butt-wrapped: The elbow and straight pipe are joined, then reinforced with multiple layers of fiberglass and resin to create a single, integrated connection.

Main Application Areas

1. Chemical Pipelines: Pipe systems for transporting various corrosive chemical media.

2. Power Plant Desulfurization Systems: Absorber Tower Inlet and Outlet Flues, Slurry Circulation Pipes.

3. Municipal Water Supply and Drainage: Water Supply Networks, Pressure Sewage Pipes.

4. Marine Engineering: Seawater Pipelines, Ship Pipelines.

5. Mining: Slurry and Tailings Pipelines.

Summary

Fiberglass elbows are the "joints" that enable the spatial layout of fiberglass piping systems. Their successful application depends on:

Rational selection (angle, radius, and pressure rating);

Appropriate manufacturing process (winding is superior to hand lay-up);

Proper installation and support.

Fully considering the fluid dynamics and mechanical support requirements ensures the flexibility and durability of this "joint," guaranteeing the long-term stability of the entire piping system.
