FRP Winding Pipe Size Guide

Choosing the correct FRP winding pipe requires careful consideration of Inside Diameter (ID), pressure rating, stiffness, application environment, and installation requirements. Unlike traditional metal pipes, fiberglass reinforced plastic (FRP) pipes combine lightweight construction, corrosion resistance, and high mechanical strength, making them widely used in water treatment, chemical processing, industrial transportation, and infrastructure projects.

For engineers, contractors, and procurement teams, understanding FRP pipe diameter, FRP pipe pressure rating, and fiberglass pipe specifications is essential for selecting the right piping solution.

Weitong FRP specializes in fiberglass reinforced plastic pipe solutions, including continuous winding FRP pipes designed for demanding industrial applications.

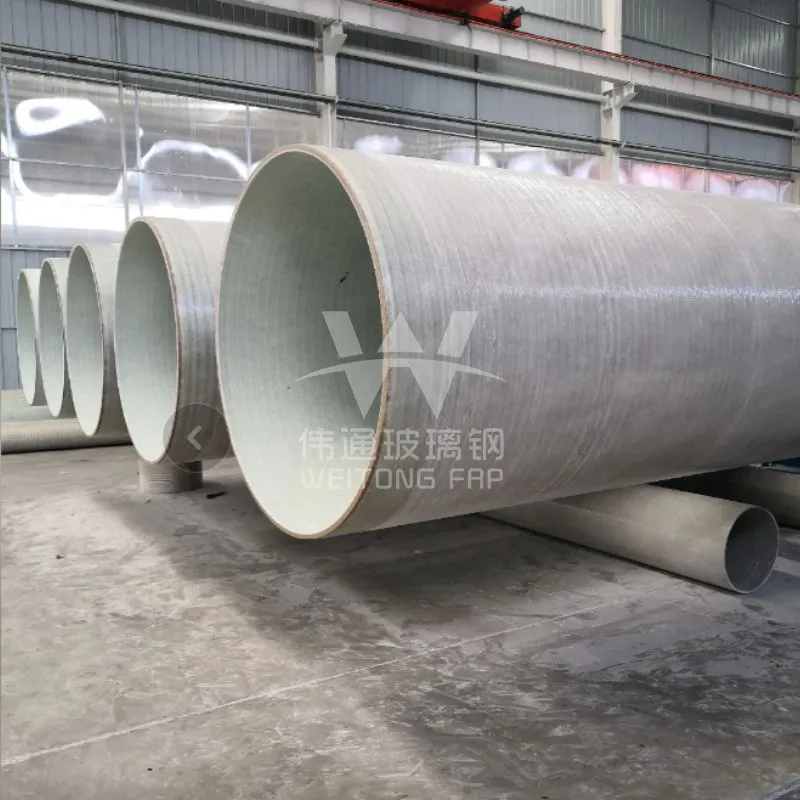

FRP Continuous Winding Pipe

Standard sizes range from 1" to 144" depending on the manufacturer, with 20", 40", and 48" lengths being the most common. Wall thickness scales directly with the pipe's operating pressure.FRP pipes are broadly broken down into several sizing dimensions and structural parameters:

1. Diameter & Length Sizing

Standard Diameters (Nominal Pipe Size - NPS): 1", 1.5", 2", 3", 4", 6", 8", 10", 12", 14", 16", 18", 20", 24", 30", 36", 42", 48", 54", 60", 72", 84", 96", 108", and120"+)

Standard Lengths: Usually manufactured in 20-foot or 40-foot sections, though custom lengths (e.g., 10 ft, 27 ft, 45 ft) can be produced for large-scale projects.

2. Pressure & Thic

Wall thickness varies significantly based on the internal pressure capacity needed. Common pressure classes include:

Gravity / Non-Pressure: Typical stiffness classes (SN) are 2500, 5000, and 10000 N/m² for underground installations.

Pressure Pipes: Rated for 50, 100, 150, 200, or 250 psi. A 2-inch pipe rated at 150 psi has a vastly different wall thickness and support span requirement than a 24-inch pipe rated for the same pressure.

3. Dimensional Measurement Variables

When planning an FRP piping project, you must account for specific measurements to ensure proper coupling and fit:

Total Length: The complete physical length of the pipe section.

Effective Length: The actual installed length that contributes to the pipeline (often slightly shorter due to bell-and-spigot joint overlaps).

ID (Inside Diameter): Used primarily for fluid capacity and hydraulic calculations.

OD (Outside Diameter): Crucial for selecting joining accessories like flanges, mechanical couplings, and pipe hangers.

Liner Thickness: Corrosion barriers (e.g., a 10 to 40 mil resin-rich inner liner) are added to the ID without contributing to the overall structural pressure rating.

4. Winding Angle Considerations

The structural sizing isn't just about thickness; it relies on the winding angle of the fiberglass filaments.

A standard 55° winding angle is the industry theoretical optimum, providing a 2:1 hoop-to-axial strength ratio—perfect to handle the radial (bursting) stress of pressurized liquids. [1, 2]

How Are FRP Winding Pipes Manufactured?

Different winding technologies are used depending on the pipe application.

Continuous Filament Winding (CFW)

Continuous filament winding is one of the most common manufacturing methods for GRP/FRP pipes.

During production:

• Continuous fiberglass strands are impregnated with resin.

• Fibers are wound around a rotating mold.

• Multiple structural layers are created.

This process allows manufacturers to produce large-diameter pipes with consistent quality.

Typical applications include:

• Water transmission systems

• Sewage pipelines

• Industrial water networks

• Infrastructure projects

Filament Winding Technology

Filament winding provides precise control over fiber angles.

By adjusting winding angles from approximately 0° to 90°, manufacturers can optimize:

• Axial strength

• Hoop strength

• Pressure resistance

This makes filament winding suitable for:

• Chemical pipelines

• High-pressure industrial systems

• Special fluid transportation

Plastic Pipe Coiling Technology

For flexible plastic pipes such as HDPE and PEX, coiling technology is used to create compact transportation rolls.

Benefits include:

• Easier transportation

• Faster installation

• Reduced connection points

FRP Pipe Diameter Selection Guide

Pipe diameter is one of the most important factors when selecting an FRP piping system.

The required diameter depends on:

• Flow capacity

• Fluid type

• Operating conditions

• Installation environment

Large-diameter FRP pipes are especially suitable for water supply and drainage systems where high flow capacity is required.

How to Choose the Right FRP Pipe Diameter?

Consider Flow Requirements

A larger diameter can reduce:

• Pressure loss

• Flow resistance

• Pumping energy consumption

Engineers usually select pipe diameter based on required flow rate and system design.

Consider Installation Space

The available installation area may influence diameter selection.

Important factors include:

• Underground space

• Existing pipeline layout

• Connection requirements

Consider Future Expansion

For long-term projects, selecting an appropriate diameter can provide additional capacity for future system upgrades.

FRP Pipe Pressure Rating Guide

Pressure rating indicates how much internal pressure an FRP pipe can safely withstand during operation.

Common classifications include:

The final pressure selection depends on:

• Working pressure

• Temperature

• Fluid characteristics

• Safety requirements

Factors Affecting FRP Pipe Pressure Performance

Fiber Reinforcement Structure

The winding angle and fiber arrangement directly influence pipe strength.

Higher hoop winding improves resistance against internal pressure.

Resin Performance

The resin system affects:

• Chemical resistance

• Temperature tolerance

• Durability

Different applications may require different resin selections.

Wall Thickness Design

A thicker FRP pipe wall generally provides:

• Higher pressure capability

• Improved mechanical strength

However, the design should balance performance and cost.

FRP Winding Pipe Applications

FRP pipes are widely used in industries requiring corrosion resistance and reliable transportation.

Water and Sewage Systems

Applications include:

• Water distribution

• Wastewater treatment

• Drainage pipelines

Advantages:

• Corrosion resistance

• Smooth inner surface

• Reduced maintenance

Chemical Industry

FRP winding pipes are suitable for transporting:

• Chemical liquids

• Corrosive media

• Industrial wastewater

Their corrosion resistance helps replace traditional metal piping in challenging environments.

Industrial Transportation Systems

Applications include:

• Power plants

• Mining operations

• Manufacturing facilities

FRP pipes provide lightweight installation and long-term durability.

How to Select the Right FRP Winding Pipe?

Before purchasing, buyers should evaluate:

Quality Testing of FRP Winding Pipes

High-performance FRP pipes undergo strict quality inspections.

Common tests include:

Hydrostatic Pressure Testing

During testing:

• The pipe is pressurized above its rated working pressure.

• The system checks for leakage and deformation.

• Pressure stability is monitored during the holding period.

For demanding applications, hydrostatic testing helps verify structural reliability.

Mechanical Performance Testing

Manufacturers may evaluate:

• Tensile strength

• Stiffness

• Pressure resistance

• Dimensional accuracy

These tests ensure consistent product performance.

Why Choose Weitong FRP Winding Pipes?

Weitong FRP provides professional fiberglass reinforced plastic pipe solutions for global industrial applications.

Product advantages include:

• Advanced FRP continuous winding technology

• Wide diameter range capability

• Excellent corrosion resistance

• High strength-to-weight ratio

• Customized pipe solutions

• Reliable quality control

Weitong FRP winding pipes are designed for applications including:

• Water transmission

• Chemical pipelines

• Industrial fluid transportation

• Infrastructure projects

With professional manufacturing experience, Weitong FRP helps customers select suitable pipe structures based on diameter, pressure requirements, and operating conditions.

Frequently Asked Questions

What diameter sizes are available for FRP winding pipes?

FRP winding pipes can be produced in a wide range of diameters, from smaller industrial pipes to large-diameter water transmission pipelines. Exact sizes depend on project requirements.

Are FRP pipes suitable for high-pressure applications?

Yes. Properly designed FRP winding pipes can be used for medium and high-pressure systems by adjusting fiber structure, wall thickness, and resin selection.

Why are FRP pipes better than traditional metal pipes in corrosive environments?

FRP pipes provide excellent corrosion resistance and do not easily rust, making them suitable for chemical and wastewater applications.

How long can FRP winding pipes last?

With proper design and installation, FRP pipes can provide long-term service performance with lower maintenance requirements compared with many traditional materials.

Conclusion

Selecting the correct FRP winding pipe requires understanding diameter requirements, pressure ratings, material structure, and application conditions.

From water transmission and sewage systems to chemical and industrial pipelines, FRP pipes provide a reliable alternative with excellent corrosion resistance, lightweight construction, and long service life.

Weitong FRP offers customized fiberglass pipe solutions, helping global customers choose the right FRP winding pipe based on project requirements and operating environments.
