How to Choose an FRP Cable Tray for Corrosive and Electrical Environments？

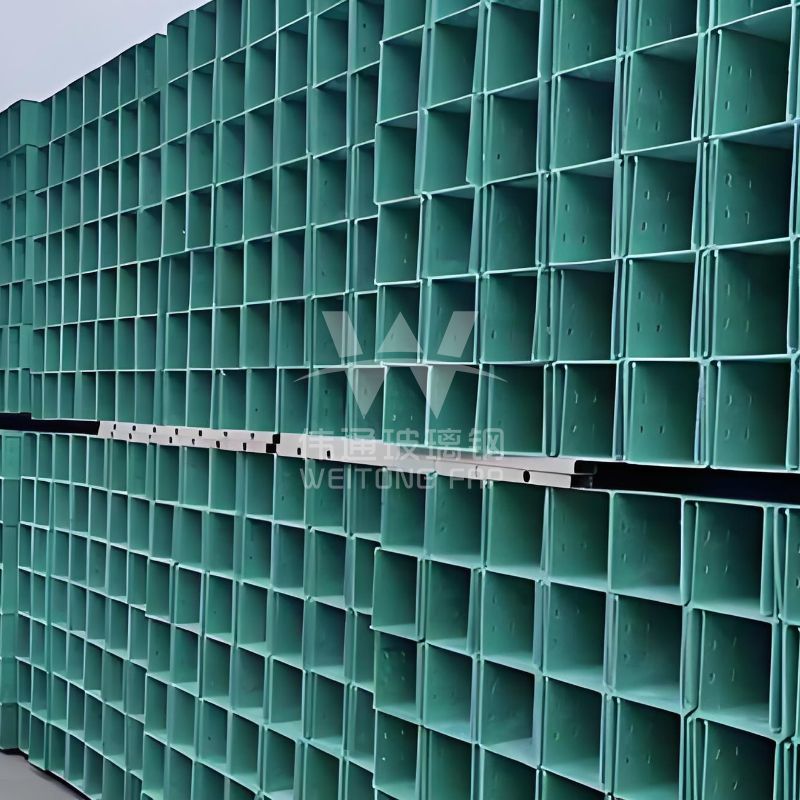

An FRP cable tray is the right choice when your cable route runs through corrosive, damp, or electrically sensitive areas where steel or aluminum trays would rust, conduct current, or need constant maintenance. This guide explains when fiberglass cable support makes sense, what to check before ordering, and how to compare it with metal tray systems so your procurement team specifies the correct product the first time.

Why FRP Cable Tray Beats Metal in Harsh Conditions？

A fiberglass cable tray solves routing problems that ordinary metal trays struggle with. The composite of glass fiber and resin matrix is non-metallic, so it does not rust and it does not conduct electricity. In a battery room, a substation, or a coastal power station, those two traits remove two of the biggest failure modes of steel support.

Weight is the second practical advantage. An FRP cable tray is far lighter than galvanized steel, which lowers transport and installation cost on a large site. It still needs proper support planning, but crews handle it more easily on long runs and elevated routes.

What Environments Call for It

Specification should follow the actual exposure, not a general assumption that fiberglass is "safer." The conditions that justify an FRP cable tray include:

1. Wastewater and water-treatment facilities where humidity and chemicals are constant.

1. Chemical processing and electroplating areas with acid, alkali, or solvent exposure.

1. Power plants and substations where non-conductive support improves electrical safety.

1. Offshore, marine, and coastal projects exposed to salt spray.

1. Battery rooms and flammable areas where spark resistance and insulation matter.

1. Renewable energy sites such as solar and wind where long-term outdoor durability is required.

If the route is a dry, ordinary indoor space with no corrosion or insulation need, galvanized steel is usually the more economical choice. The FRP tray earns its place where the environment is hostile.

How to Choose the Right Resin System？

Corrosion resistance is not one simple property. It depends on the actual chemical, its concentration, the service temperature, and whether the surface stays wet or dry. The resin system is what determines whether the tray survives.

• Orthophthalic polyester: general mild-duty use.

• Isophthalic polyester: stronger chemical and weathering resistance for most industrial routes.

• Vinyl ester: best for aggressive acid, alkali, and high-temperature duty.

• Epoxy: high strength and good chemical resistance for demanding process areas.

Ask the supplier to review the intended environment and confirm the resin is appropriate. A tray that works in one plant area may fail in another if the media differ.

Load, Span and Support Planning

An FRP cable tray must be checked for cable load and support span just like a steel or aluminum tray. Fiberglass is light to handle, but its elastic modulus is lower than metal, so support spacing often needs to be shorter or reinforcing ribs may be required.

Calculate the total load including all cables plus any additional expected load. Choose a ladder or reinforced trough type for heavier loads. Do not copy support spacing from a metal tray without review. Bends, tees, risers, equipment drops, and heavily loaded sections may require closer supports. The approved project drawings should show where brackets, hangers, or floor supports are needed.

Type: Ladder, Trough or Channel

The structural type should match cable density and access needs.

• Ladder tray: best airflow and easy cable access for heavy industrial runs.

• Perforated or ventilated trough: protects cables while allowing some ventilation.

• Channel tray: narrow routes, wall mounting, and trench covers.

Prevent overcrowding, which reduces airflow and can cause overheating. Match the type to the cable count, not just the available budget.

Fire, Smoke and Code Considerations

Because an FRP cable tray is non-metallic, fire behavior and smoke requirements should be reviewed carefully. The acceptable material depends on building type, installation area, cable type, local code, and owner specification. Do not assume fiberglass is acceptable in every indoor route.

Request the flame-retardant rating and smoke-density class for your project. Confirm relevant certifications such as UL, CE, or ISO 14001, particularly for fire-rated and safety-compliant installations. Weitong FRP holds ISO 9001, ISO 14001, and ISO 45001 certifications across its FRP production system, which supports documentation requests during tender review.

Fittings and Accessories

A complete FRP cable tray route may need covers, bends, tees, reducers, couplers, hold-down clamps, dividers, and support hardware. If the tray is selected for corrosion resistance or non-metallic performance, the accessories should be reviewed with the same care as the straight sections. Mixing metal brackets with a non-metallic tray can still create maintenance problems, so confirm the hardware matches the exposure.

Why Specifiers Choose Weitong FRP Cable Tray？

Weitong FRP manufactures fiberglass cable trays as part of a full FRP product range that also covers pipes, tanks, profiles, and gratings. The company runs pultrusion equipment up to 45 tons of traction and a BPO curing oven for stable, repeatable composite quality. With more than 20,000 square meters of workshop, 268 staff, and 43 engineers, the plant supports one-stop FRP procurement for corrosive and electrical environments.

For projects that need corrosion-proof, non-conductive cable support, the Weitong FRP cable tray product page lists the available structural types and resin options. Buyers can also review related FRP grating for walkways and platforms, and the electric power and chemical industry application pages for environment-matched references.

In Short

Choose an FRP cable tray when corrosion, moisture, or electrical insulation drives the specification. Match the resin to the actual chemical and temperature, size the load and span with proper support spacing, pick ladder or trough by cable density, and confirm fire and code requirements before ordering. Weitong FRP supports the selection with ISO-certified production and a full FRP product range.

People Also Ask

• Is FRP cable tray better than galvanized steel? It is better where rust, conductivity, or weight are problems; steel is cheaper for dry ordinary routes.

• Can FRP cable tray carry heavy power cables? Yes, with the right ladder type, resin, and support span confirmed by load-span data.

• Does FRP cable tray need grounding? Its non-conductive body reduces shock risk, but follow the project electrical code for any bonded metal parts.

• What resin resists acid the best? Vinyl ester is the usual choice for aggressive acid and high-temperature duty.

FAQ

Q1: When should I specify an FRP cable tray instead of metal?

A1: Specify FRP where the route faces corrosion, constant humidity, salt spray, or where non-conductive support improves safety, such as chemical plants, wastewater facilities, substations, and coastal projects.

Q2: How do I choose the resin system?

A2: Match resin to the exposure. Use isophthalic polyester for general industrial duty, vinyl ester for aggressive acid or alkali, and epoxy for high-strength process areas. Confirm concentration and temperature with the supplier.

Q3: Are FRP trays weaker than steel because they are lighter?

A3: They are strong for their weight, but the elastic modulus is lower, so support spans are often shorter. Size the tray by load-span curves and project drawings, not by steel assumptions.

Q4: What fire ratings should I request?

A4: Request the flame-retardant class and smoke-density rating your local code and owner specification require. Do not assume a non-metallic tray is acceptable in every indoor route without review.

Q5: Can Weitong FRP supply fittings and custom lengths?

A5: Yes. Weitong FRP produces the tray together with covers, bends, tees, and support accessories, and can match project drawings for straight sections and fittings.
