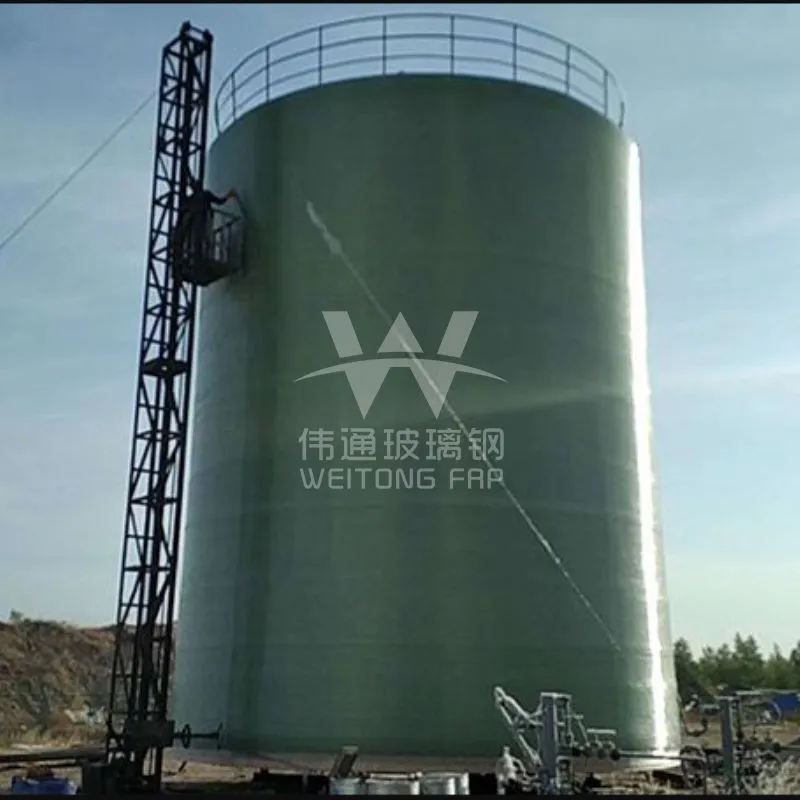

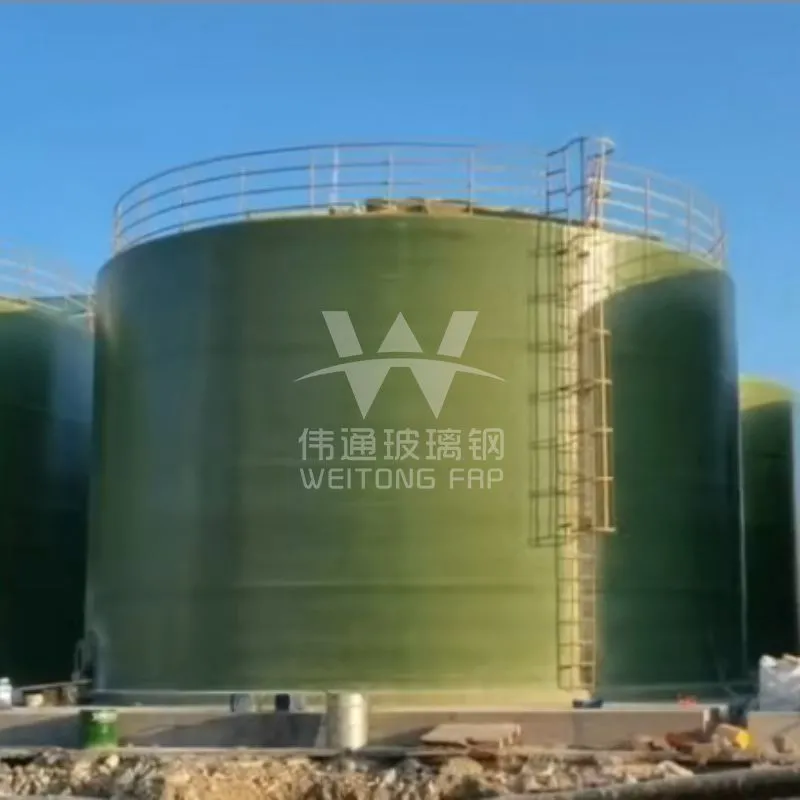

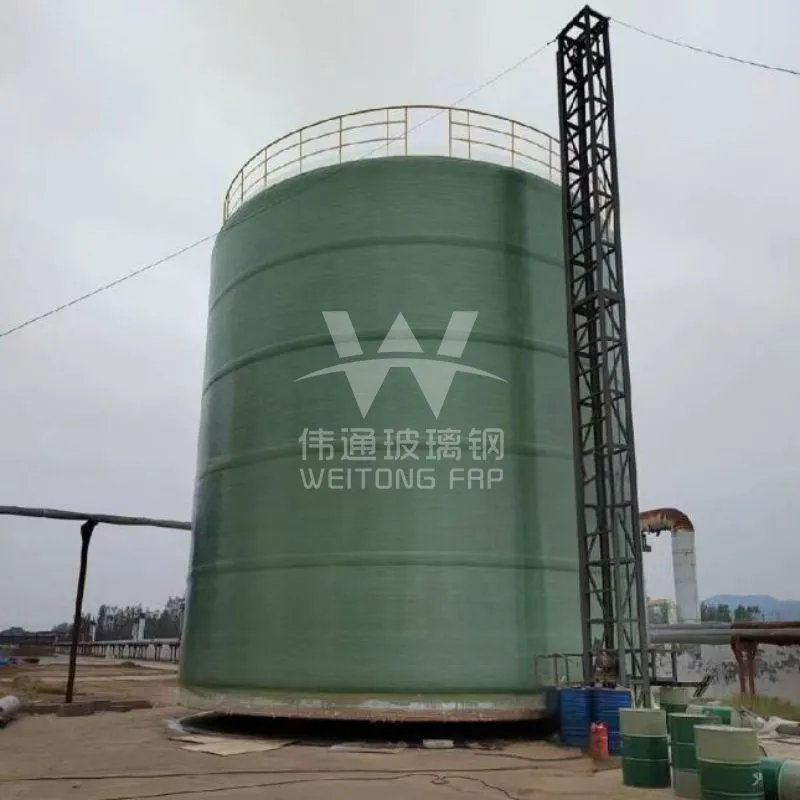

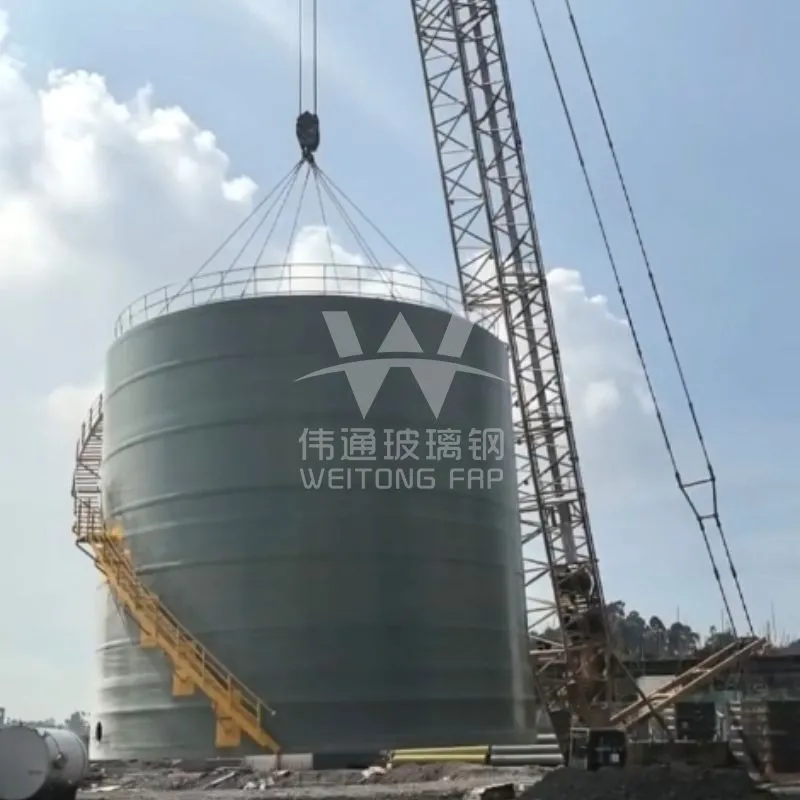

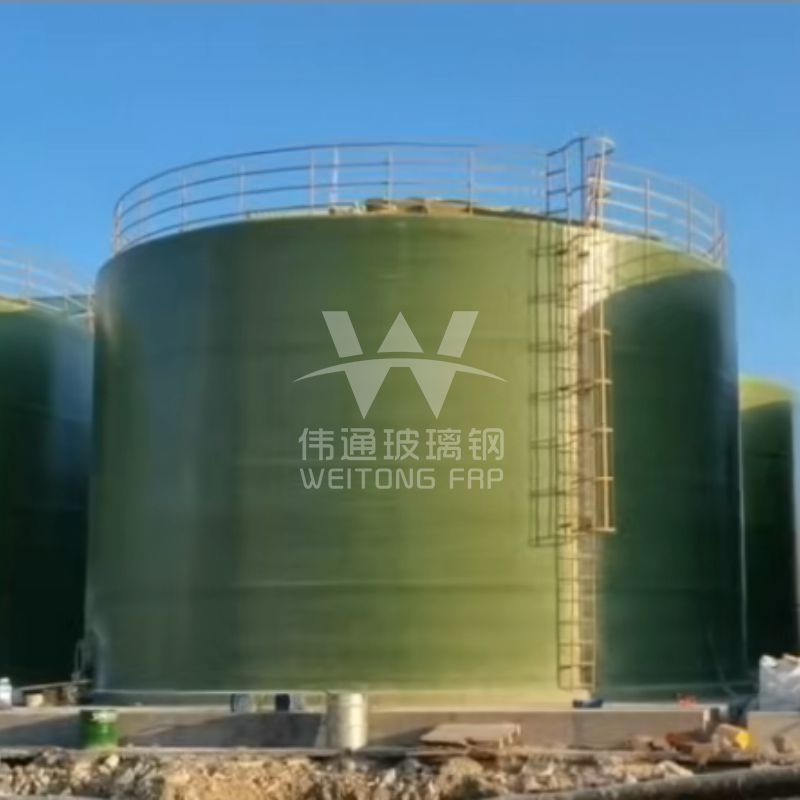

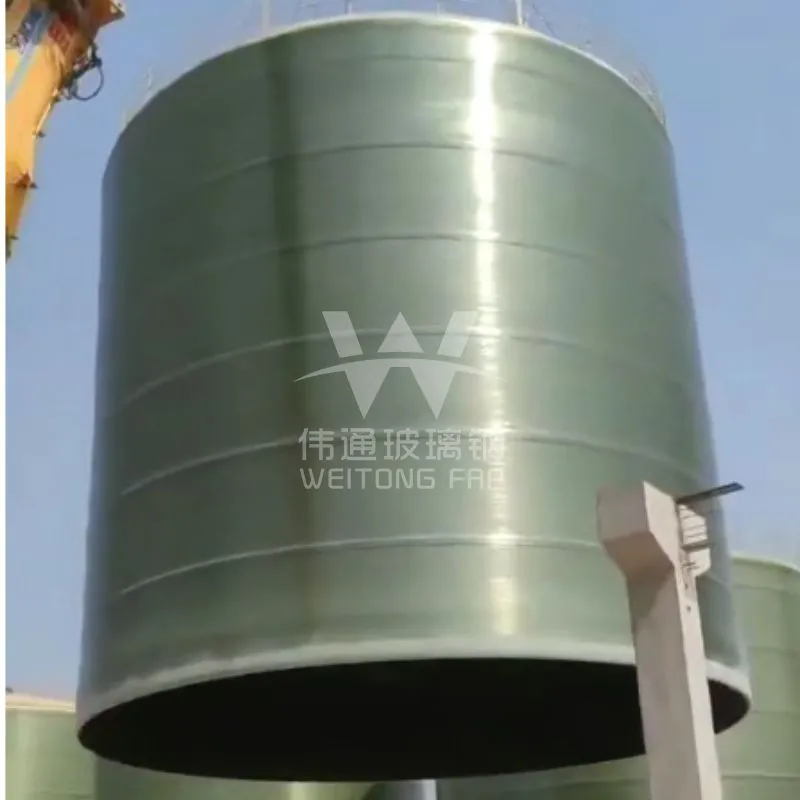

Large Fiberglass On-Site Storage Tanks

Processing Technology:

Large storage tank processing methods include vertical winding and horizontal winding. Our company currently primarily utilizes the vertical winding method. Compared to the horizontal method, the vertical method successfully solves the problems of large-diameter tanks being unable to be fully wound and limited on-site space. Furthermore, because the tanks are demolded vertically, they are prevented from tilting during demolding, ensuring product quality.

Advantages:

This solves the problem of limited transport due to road space constraints.

Production Requirements:

Large tanks require production equipment to be transported to the customer's site for processing. Therefore, the customer must provide the following processing facilities:

● Suitable vessel foundation

● Processing area >10 x 15 m

● Power supply connected to the edge of the processing area, voltage 380V/220V, power ≥30kW

● Fire water source within 100 m

As part of our FRP Storage Tanks product line, Weitong FRP manufactures large fiberglass tanks for projects where capacity requirements exceed what a standard, factory-built tank can deliver in one piece. When a tank's diameter or volume goes beyond what can be legally transported by road, the conventional "build in the factory, ship to site" approach breaks down. As an experienced fiberglass tanks manufacturer, Weitong FRP solves this by bringing the manufacturing process directly to your installation site.

On-Site Fabrication Process

Building a large fiberglass tank on-site follows a controlled, engineered sequence:

● Foundation and site survey, followed by equipment mobilization to the project location

● Assembly of the filament winding machine and mold sized to the required tank diameter

● Application of the corrosion-resistant liner layer, followed by computer-guided filament winding of the structural shell

● Installation of nozzles, manways, ladders, and other fittings per project specification

● Controlled curing, followed by hydrostatic testing and dimensional inspection before handover

Every stage follows the same quality control checkpoints used in our factory production, so project owners receive a large fiberglass tank built to the same standard regardless of where the winding takes place.

Large Diameter FRP Tank Specifications

Weitong FRP's on-site fabrication capability supports large diameter fiberglass storage tanks up to DN23000mm, with configurations tailored to project-specific volume, wall thickness, and fitting requirements. Available options include:

● Vertical or horizontal tank orientation, with flat, cone, or dished bottoms

● Custom manway sizing and placement for inspection and maintenance access

● Reinforced nozzle and flange connections engineered for large-volume flow rates

● Ladders, handrails, and platform access for tanks installed above grade

● Resin systems selected to match the specific corrosive, abrasive, or high-temperature conditions of the stored medium

Why Large Fiberglass Tanks Require a Different Manufacturing Approach

Once a fiberglass storage tank's diameter grows large enough, transporting a factory-finished shell becomes impractical or impossible — oversized loads face road, bridge, and route restrictions that a project schedule often cannot absorb. Large fiberglass tanks solve this problem at the source: instead of building the tank in our workshop and shipping the finished vessel, our engineering team mobilizes filament winding equipment and mold systems directly to your project site, then winds the tank shell in place, layer by layer, to the exact diameter your project requires.

This on-site fabrication method allows Weitong FRP to deliver large diameter FRP tanks with the same laminate quality and mechanical performance as our workshop-built tanks — because the winding process, resin systems, and cure procedures are identical, whether performed inside our facility or on your foundation.

Applications of Large Fiberglass Tanks

Large-scale FRP storage tanks are used where project volume, corrosive conditions, or site logistics rule out both metal tanks and standard factory-built fiberglass tanks:

● Seawater Desalination Projects — large-capacity brine and process water storage supporting desalination facilities, consistent with our completed seawater desalination project work

● Power Plant Desulfurization Systems — high-volume wastewater storage for zero-discharge treatment systems at coal and thermal power facilities, an application area covered in our electric power industry projects

● Large Chemical Processing Sites — corrosion-resistant storage for chemical plants requiring volumes beyond standard tank capacity

● Municipal Water and Fire Protection Reserves — large-volume potable water and firewater storage for municipal and industrial sites

● Mining and Mineral Processing — storage for leaching solutions and process liquids at mine sites where access and transport are constrained

Weitong FRP — A Fiberglass Tanks Manufacturer Built for Large-Scale Projects

Hebei Weitong FRP Co., Ltd. has manufactured fiberglass reinforced plastic products since 2015, operating from a 20,000-square-meter production base with 11,000 square meters of dedicated workshops. As a certified fiberglass tanks manufacturer holding ISO9001, ISO14001, and ISO45001 certifications, our storage tank division maintains an annual production capacity of over 10,000 tons, supported by a high-specification pressure testing platform, 45-ton pultrusion equipment, and BPO curing ovens that carry the same quality controls into our on-site fabrication projects.

Our large fiberglass tanks have supported qualified partners including CNPC, Sinopec, CNOOC, Huaneng Group, and Beijing Enterprises Water Group, and we export FRP storage tanks to the United States, Germany, Italy, Russia, Pakistan, South Korea, and dozens of other countries, with a dedicated Egypt branch established in 2025 to serve large-scale infrastructure projects across the Middle East and Africa directly.

Request a Large Fiberglass Tank Quotation

Every large-diameter FRP tank project starts with your site conditions, capacity target, and the medium to be stored. Our engineering team reviews these requirements and proposes the tank configuration, on-site fabrication schedule, and fitting layout that fits your project. Contact our team to discuss your large fiberglass tank requirements, or explore our full range of FRP storage tanks, including vertical, horizontal, and pressure configurations for standard-capacity projects.
