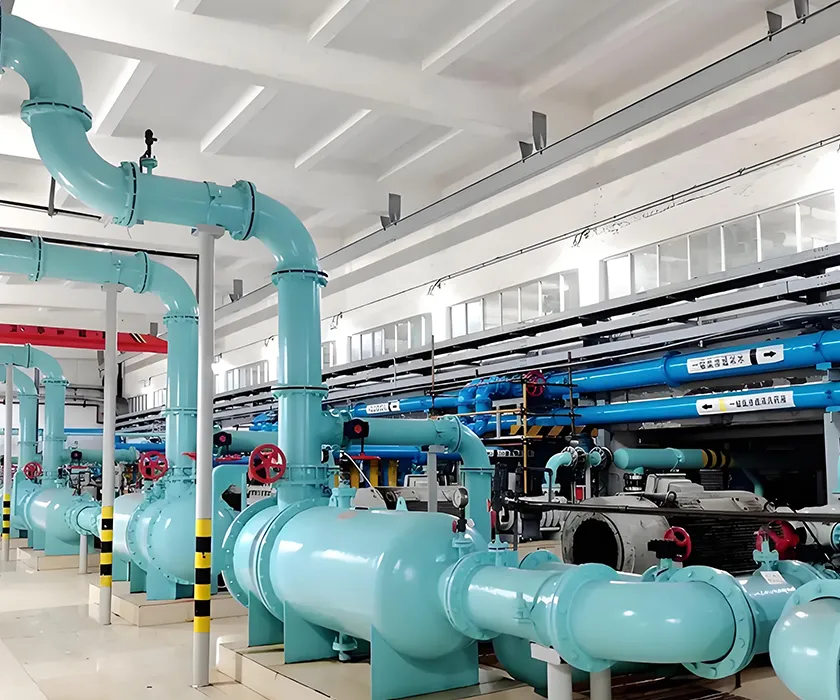

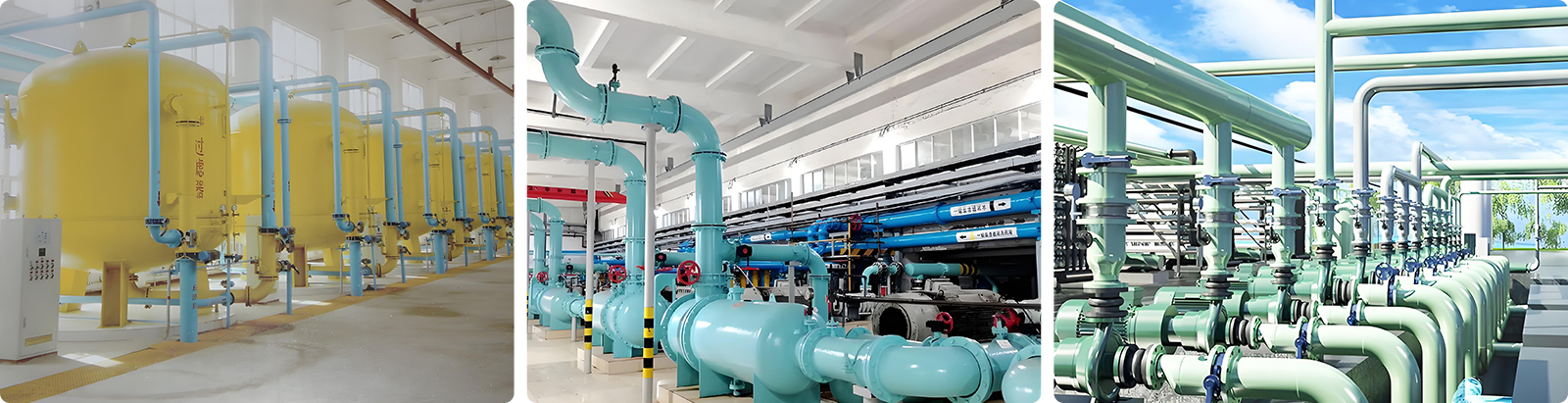

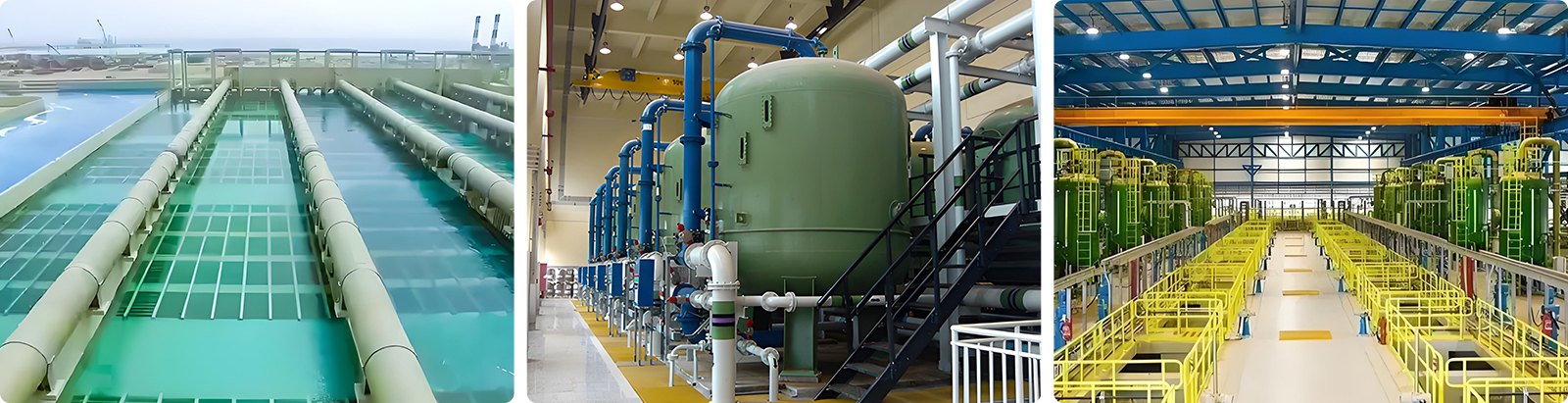

FRP Pipes for Seawater Desalination

FRP pipes are used in seawater desalination projects to transport raw seawater, process water, concentrated brine, and treated water. Each service places different demands on the piping system, from corrosion resistance at the intake to pressure control and chemical compatibility within the plant.

Weitong FRP supplies fiberglass pipes and fittings for project-specific piping requirements. Pipe dimensions, resin systems, pressure ratings, and connections are selected according to the conveyed medium, operating conditions, and installation layout.

Where FRP Pipes Are Used in Desalination Plants

Seawater transportation

During the long-distance seawater extraction process at desalination plants and the transportation of extracted seawater to pretreatment systems, FRP pipes, with their corrosion resistance, smooth interior, and low fluid resistance, prevent corrosion-related leaks and ruptures, improving seawater transportation efficiency and reducing energy consumption.

Brine discharge and post-treatment

The large amounts of highly corrosive brine generated by desalination can be transported to designated discharge areas via FRP pipes. FRP pipes are resistant to corrosion and prevent leaks from contaminating the environment. Furthermore, during the transportation of desalinated freshwater to storage facilities or water supply systems, FRP pipes prevent secondary contamination of the water, ensuring water quality.

Pretreatment and Process Water Transfer

FRP piping connects pretreatment equipment and transfers water between treatment stages. Resin and liner selection should account for the chemicals present, their concentrations, and exposure temperatures. Backwash cycles and changes in operating pressure also need to be considered when specifying pipes and joints.

Product Water Transfer

FRP pipes can transport treated water to storage tanks or downstream distribution systems. Where the water is intended for drinking, the pipe materials, joints, and gaskets must meet the applicable potable-water contact requirements.

Why Choose FRP Piping for Desalination?

Corrosion Resistance Matched to the Service

FRP does not rust like carbon steel. Its resistance to seawater and process chemicals depends on the selected resin system and corrosion barrier. Matching these materials to the actual service conditions helps reduce corrosion-related repairs and replacement.

Lightweight Construction

Compared with steel pipes of similar dimensions, fiberglass pipes are lighter, which can simplify transportation, lifting, and positioning. This is particularly useful for large-diameter pipe sections and installations with restricted equipment access.

Smooth Internal Surfaces

A smooth internal surface helps limit frictional losses during water transfer. Hydraulic performance should be assessed using the complete pipeline layout, including pipe diameter, flow velocity, fittings, and operating conditions.

Flexible Piping Layouts

Straight pipes, fittings, and fabricated sections accommodate changes in direction, branches, and equipment connections. Coordinating these components during design helps reduce dimensional mismatches and unnecessary modifications on site.

Specify the Pipe for Its Actual Duty

A desalination plant should not use one pipe specification for every service. Intake, process, brine, and product-water lines need to be evaluated individually.

High-pressure reverse osmosis feed lines and high-temperature thermal desalination services require separate material and design verification. Suitability should be confirmed for the specified pipe system rather than assumed from the FRP material name.

Pipes and Fittings for a Coordinated System

A reliable installation depends on more than the straight pipe. Elbows, tees, reducers, flanges, and joints must be compatible with the pipeline’s dimensions, pressure requirements, and chemical exposure.

Weitong FRP offers FRP pipe fittings for direction changes, branch connections, diameter transitions, and equipment interfaces. Reviewing the pipe and fitting requirements together helps establish a consistent specification across the piping package.

At pump and valve connections, flange dimensions, gasket selection, alignment, and independent equipment support deserve particular attention. Heavy components should not impose unintended loads on fiberglass connections.

Installation and Quality Considerations

Installation requirements vary with the pipeline location. Buried pipes depend on suitable bedding and controlled backfill. Above-ground lines require correctly positioned supports and allowance for movement. Submerged pipelines need project-specific assessment of buoyancy, seabed conditions, and marine loads.

Before installation, check pipe dimensions, joint surfaces, and components for handling damage. Joint preparation, assembly, curing where applicable, and pressure testing should follow the approved installation procedure.

Procurement specifications should also define the required inspection records, material traceability, dimensional checks, and testing documentation. Agreeing on these requirements before production gives the supplier and project team a clear basis for acceptance.

Discuss Your Desalination Piping Requirements

Send Weitong FRP your pipeline drawings or material list, together with the medium, pipe diameters, design pressure, operating temperature, and installation conditions. Our team can review the required pipes and fittings and prepare a quotation based on your project specifications.

FRP Products for Building and Construction

Building access routes, equipment supports, and service installations need materials that suit both the site conditions and everyday maintenance requirements. In damp equipment rooms, exposed rooftop areas, and corrosive industrial buildings, fiberglass reinforced plastic (FRP) provides a lightweight, corrosion-resistant option for selected structural and building-service components.

Weitong FRP supplies fiberglass products for walkways, platforms, support frames, cable management, and ventilation applications. Product selection starts with the installation location, required loads, available space, and environmental exposure.

- Enclosures: These include fence guardrails, doors, and windows. FRP fence guardrails are lightweight, strong, corrosion-resistant, and maintenance-free, making them suitable for a variety of applications, including municipal projects, industrial fields, and specialized environments.

- Roofing: FRP roofs are lightweight, strong, corrosion-resistant, weather-resistant, and easy to process. They can be used in industrial plants, stadiums, commercial buildings, and more. For example, a chemical plant's roof utilizes FRP grating, effectively preventing chemical corrosion and extending the roof's service life.

- Ventilation Ducts: FRP ventilation ducts are corrosion-resistant, lightweight, strong, have low fluid resistance, and are insulated and antistatic. They are suitable for industrial and building ventilation, for example, transporting corrosive waste gases from chemical plants and odorous gases from sewage treatment plants.

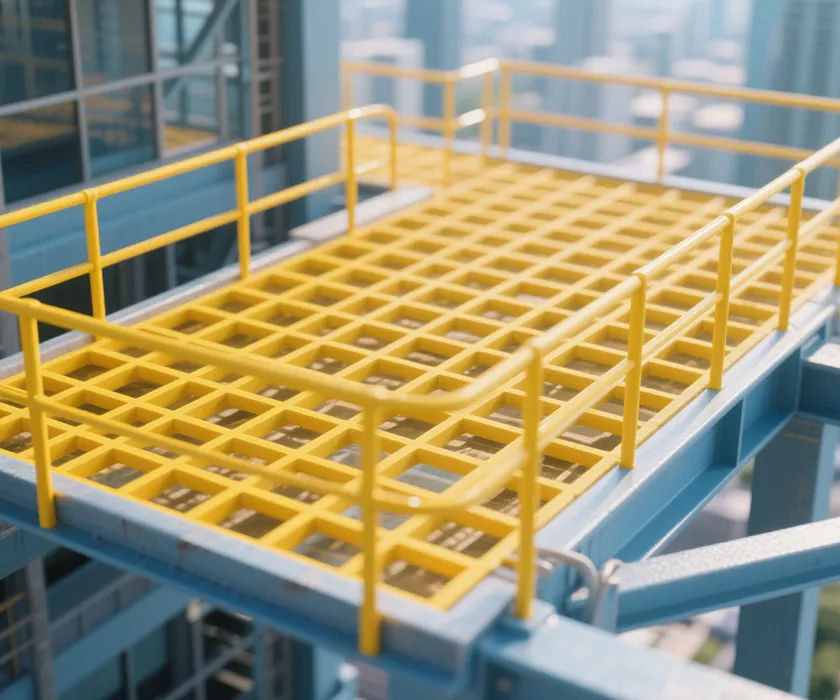

- Gratings and Platforms: Fiberglass gratings can be used in inspection corridors for photovoltaic power plants, platforms for charging stations for new energy vehicles, and tree gratings for municipal landscaping. They offer strong load-bearing capacity, corrosion resistance, and ease of installation.

Rooftop Walkways and Equipment Access

Rooftop equipment needs accessible maintenance routes. FRP grating can form walkways between roof access points, solar panels, air-conditioning units, and other service equipment. Its open structure allows drainage, while an appropriate slip-resistant surface helps improve footing in wet conditions.

The walkway should be designed together with its supports and fixing arrangement. Roof load capacity, wind uplift, maintenance loads, and protection of the waterproofing layer all need consideration. Grating provides a walking surface; the roof beneath remains responsible for weatherproofing.

For solar installations, walkway dimensions should also preserve access to panel connections and avoid obstructing drainage or maintenance areas.

Structural Profiles for Frames and Supports

Fiberglass angles and channels are used to build brackets, equipment frames, edge reinforcements, and supports for service installations. Their low weight makes them easier to handle in elevated locations or areas with limited lifting access.

FRP angles and channels serve different purposes within an assembly. Angles suit corner connections and bracing, while channels can provide framing members and support beams.

Profile dimensions alone do not determine structural suitability. Span, load direction, deflection limits, bolt-hole positions, and connection details should be reviewed as part of the complete assembly.

Cable Management and Ventilation

Fiberglass Cable Trays

Fiberglass cable trays support and organize power, control, and communication cables in building service areas. They are particularly useful where humidity or corrosive exposure makes metal corrosion a maintenance concern.

Tray width and depth should accommodate the planned cable arrangement and future additions. Support spacing, cable weight, bends, and access for cable replacement should be coordinated with the building’s mechanical and electrical layout.

FRP Ventilation Ducts

FRP ducts can be specified for ventilation systems carrying humid air or compatible corrosive fumes. Applications include industrial service buildings, enclosed treatment areas, and specialized exhaust installations.

The resin system should match the exhaust composition and temperature. Duct dimensions, operating pressure or vacuum, joint sealing, support positions, and cleaning access are also important. Where fire performance or static control is required, these properties must be specified and verified for the selected duct construction.

FRP Components for Building Renovation

Replacing deteriorated access platforms or service supports often means working around existing equipment and restricted access. FRP components can be considered where lower component weight and corrosion resistance offer practical advantages during refurbishment.

Accurate site measurements are essential. Replacement panels and profiles must fit the existing support arrangement, maintain clearances, and provide access to equipment below. Existing steelwork, anchors, and bearing surfaces should be assessed before reuse.

For projects with short installation windows, agreeing on panel sizes, connection positions, and delivery sections before ordering helps reduce on-site adjustments.

Plan Your FRP Construction Components

Whether the project involves a rooftop maintenance route, an equipment platform, or replacement service supports, the most useful starting point is a clear installation drawing.

Send Weitong FRP your layout, dimensions, quantities, support spacing, and design loads. Include site photographs and any requirements for surface finish, outdoor exposure, or fire performance so we can discuss suitable products and prepare a project-specific quotation.

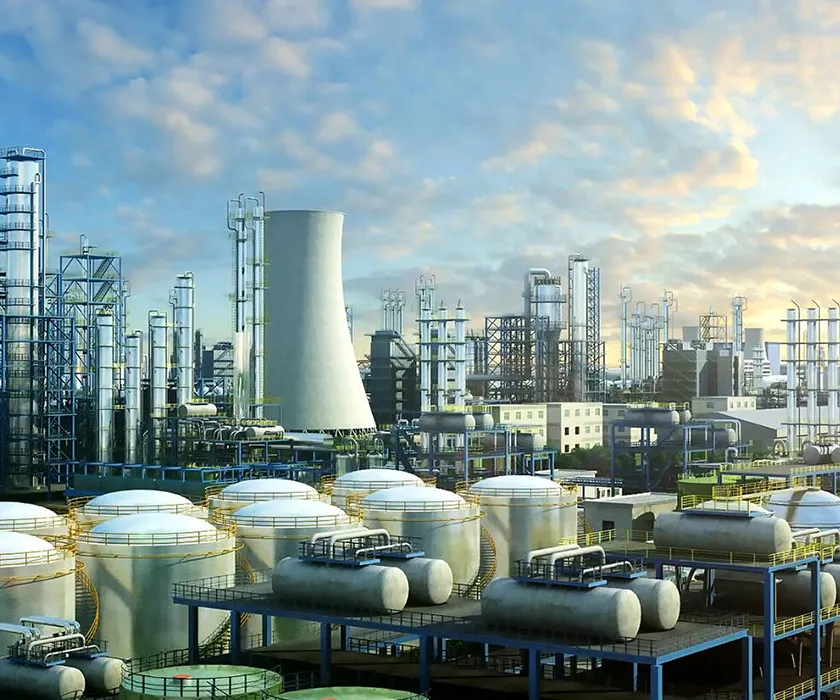

FRP Equipment for the Chemical Industry

Chemical plants need equipment that remains compatible with the materials handled throughout production, storage, cleaning, and waste treatment. A tank storing a single chemical operates under different conditions from a transfer line carrying mixed liquids or a scrubber exposed to hot, humid exhaust.

Weitong FRP supplies fiberglass tanks, pipes, fittings, and treatment equipment for chemical applications. Material selection is based on the complete service conditions, including chemical composition, concentration, temperature, and mechanical loads.

- Storage equipment: These can be used to store various corrosive media, including acids, alkalis, saline solutions, and organic solvents. Examples include FRP storage tanks and tanks.

- Transportation equipment: FRP pipes and fittings (such as elbows and flanges) are essential for transporting corrosive fluids in the chemical industry. Their smooth inner walls minimize fluid resistance, reducing energy consumption. They are also wear- and corrosion-resistant, offering a long service life and are suitable for transporting chemical raw materials, wastewater, and other waste liquids.

- Tower equipment: FRP absorption towers, scrubbers, and cooling towers play a vital role in gas purification, absorption, and cooling processes in chemical production. For example, absorption towers can be used to treat corrosive gases such as sulfur and chlorine. Their corrosion-resistant tower structure ensures a stable purification process. - Reaction Equipment: Some small reactors and mixing tanks are also made of FRP. These materials are suitable for chemical reactions where corrosion is not a concern but equipment weight and cost are a concern. They meet the corrosion resistance and structural strength requirements of the reaction process.

- Environmental Protection Equipment: FRP products such as gratings, covers, and fan casings are also widely used in chemical wastewater and exhaust gas treatment systems. Their corrosion resistance allows them to withstand the harsh media found in treatment environments, while also being easy to install and maintain, contributing to the efficient operation of environmental protection processes.

Chemical Storage and Feed Systems

FRP tanks can be specified for selected acids, alkalis, salt solutions, and other compatible chemicals. The appropriate resin and corrosion barrier depend on the exact substance and operating conditions; suitability for one chemical does not establish suitability for another.

Tank design also needs to reflect how the vessel will be filled, emptied, vented, and maintained. Liquid density determines hydrostatic loading, while filling and withdrawal rates affect venting requirements. Nozzle positions should accommodate transfer piping, level instruments, overflow connections, and maintenance access.

For chemical feed systems, the storage tank, outlet connection, dosing equipment, and connecting pipework should be reviewed together. This helps identify incompatible seals, unsupported connections, and inaccessible maintenance points before installation.

Process Transfer and Distribution Piping

Chemical transfer lines connect unloading points, storage vessels, dosing stations, and process equipment. FRP piping can provide a corrosion-resistant flow path when its resin system, liner, and joints are suitable for the service.

Straight pipes and FRP pipe fittings should be specified as a coordinated system. Elbows accommodate routing changes, tees serve branch lines, reducers connect different diameters, and flanges provide interfaces with equipment and valves.

Particular attention is needed at pump discharge connections, frequently operated valves, and changes in direction. Pressure fluctuations, vibration, thermal movement, and concentrated equipment loads must be addressed through the piping layout and support design.

Where a line handles several products, compatibility should cover every conveyed chemical as well as flushing and cleaning solutions.

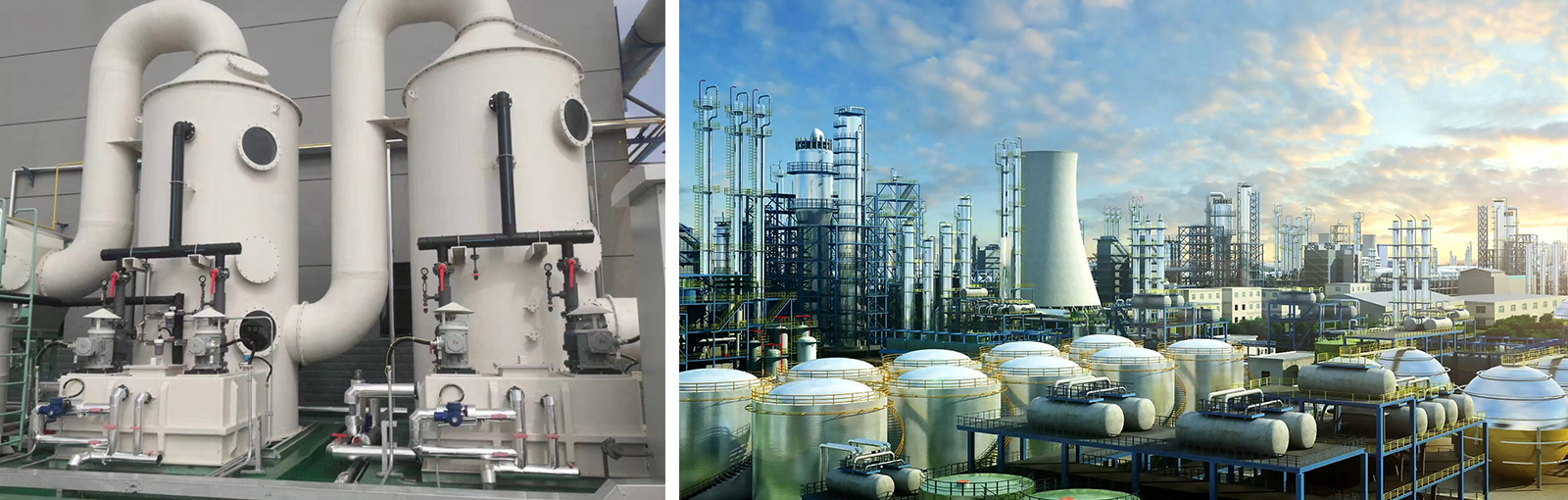

Corrosive Exhaust Collection and Scrubbing

Chemical production can generate fumes that require collection and treatment before discharge. FRP ducts, absorption towers, and scrubber bodies can be used in suitable corrosive exhaust services.

Equipment selection should consider both the gas stream and the scrubbing liquid. Relevant conditions include gas composition, moisture, inlet temperature, chemical concentration, and the possibility of condensation. The environment at the gas inlet may differ substantially from conditions elsewhere in the tower.

For scrubber systems, define:

• Gas flow rate and expected variations.

• Contaminants and required outlet concentrations.

• Scrubbing-liquid chemistry and operating temperature.

• Fan suction and equipment pressure conditions.

• Access requirements for packing, spray nozzles, and mist eliminators.

The FRP shell provides containment and structural support. Removal performance also depends on process design, gas–liquid contact, reagent control, and maintenance.

Chemical Wastewater Collection and Treatment

Wastewater composition can change between production batches, cleaning cycles, and treatment stages. FRP tanks and piping may be used for compatible collection, transfer, and treatment duties, provided selection considers the full range of expected conditions.

Average pH alone is not enough to establish material suitability. Residual solvents, oxidizing chemicals, suspended solids, and temperature peaks may affect the corrosion barrier or equipment design.

Neutralization requires particular attention because chemical addition can create localized heat and concentrated exposure near the dosing point. Mixing arrangements, chemical entry locations, and maximum temperatures should be defined before the vessel is specified.

Where solids are present, flow velocity, settling, abrasion, and cleaning access should also be reviewed.

Design for Inspection and Maintenance

Maintenance access should be considered before equipment dimensions and nozzle locations are finalized. Tanks need suitable inspection access, piping requires accessible joints, and scrubbers need space for internal component removal.

During operation, inspection should focus on changes such as surface blistering, cracking, exposed fibers, joint leakage, or deformation. Inspection intervals should reflect the chemical duty and operating history.

Changes to the process also require review. Increasing temperature, introducing a different cleaning agent, or changing chemical concentration can affect equipment that was suitable for its original service. Existing material specifications should be checked before making these changes.

Discuss Your Chemical Equipment Requirements

Send Weitong FRP your equipment drawings or process requirements, together with the chemical composition, concentration, operating temperature, pressure or vacuum, and required capacity or flow rate.

For replacement equipment, include the original specification and details of any leakage, corrosion, or operating changes. These records help establish the requirements for the proposed tanks, piping, fittings, or exhaust-treatment equipment.

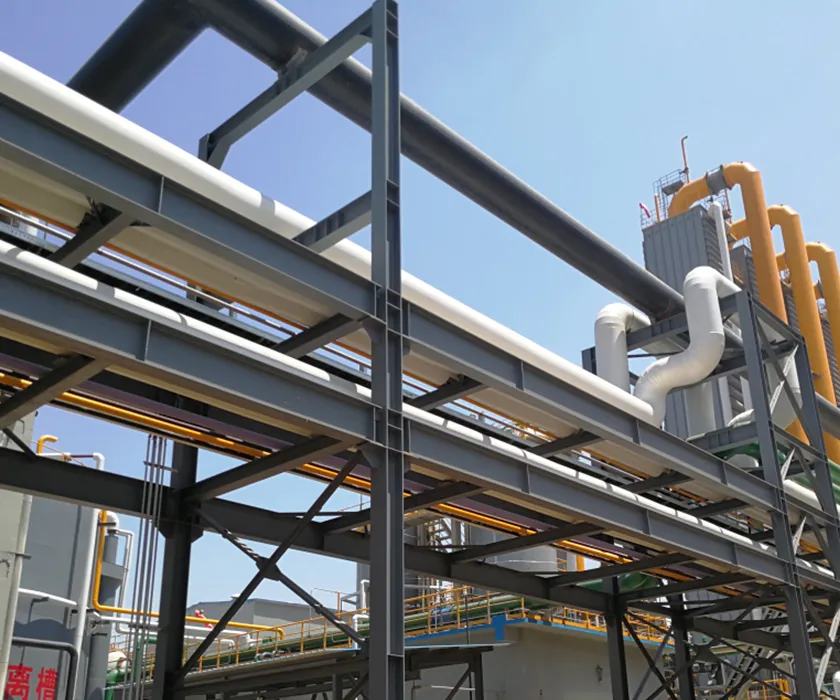

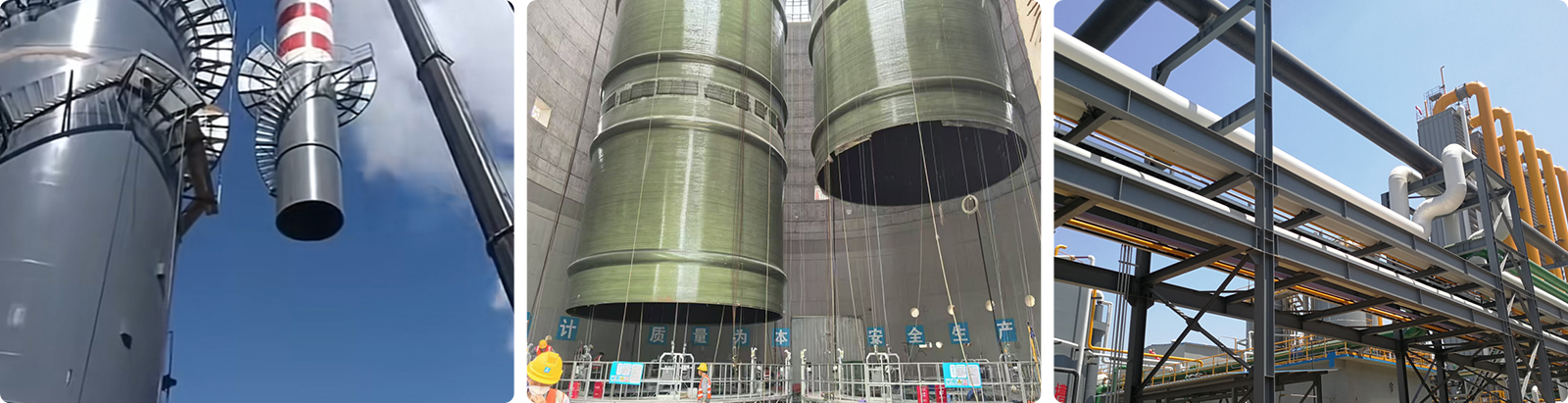

FRP Products for Power Plants and Electrical Infrastructure

Reliable power generation depends on the systems supporting the generating equipment. Cooling-water circuits, wastewater treatment facilities, and cable routes must remain serviceable despite continuous moisture, chemical exposure, and changing operating loads.

Weitong FRP supplies fiberglass pipes, tanks, cable trays, and related components for power industry applications. Each product is selected for its role within the plant, with attention to operating conditions, equipment interfaces, and planned maintenance.

FRP products, thanks to their corrosion resistance, high strength, light weight, and excellent insulation, are widely used in the power industry. This is primarily reflected in the following areas:

- Cable protection facilities: These include cable protection pipes and cable trays, effectively protecting cables from environmental influences (such as corrosion and mechanical damage). Their excellent insulation properties make them suitable for laying power transmission lines.

- Insulation components: These can be made into insulators and insulation brackets, leveraging their excellent insulation properties to ensure the safe operation of power equipment, particularly in high-voltage transmission.

- Cooling towers: FRP cooling towers are corrosion-resistant and offer excellent heat dissipation. They are commonly used in circulating water cooling systems in power plants and other locations. Compared to traditional materials, they are more durable and have lower maintenance costs.

Circulating and Auxiliary Cooling-Water Systems

Cooling-water pipelines connect pumps, heat exchangers, cooling facilities, and return-water systems. FRP pipes can be used for suitable freshwater, treated-water, and seawater duties, providing a non-metallic alternative where corrosion affects conventional piping.

For large circulating-water lines, hydraulic capacity and mechanical loading must be assessed together. Pipe diameter influences flow velocity and pressure loss, while pump starts, shutdowns, and valve movements can create transient pressures beyond normal operating conditions.

Design Around Pump and Equipment Connections

Connections near pumps and heat exchangers require particular attention to alignment, vibration, and external loads. Heavy valves and equipment should have independent support so their weight is not transferred into fiberglass flanges.

Elbows, tees, reducers, and other FRP pipe fittings help accommodate equipment interfaces and changes in routing. Their pressure ratings, dimensions, and joint arrangements should be coordinated with the adjoining pipework.

These applications concern appropriately specified cooling and auxiliary services. Main steam and high-temperature boiler circuits require different material and design considerations.

Cooling Towers and Wet Operating Areas

Cooling towers expose structural and enclosure components to repeated wetting, humid air, and water-treatment chemicals. FRP is used in cooling-tower applications because suitable composite constructions can resist these conditions without the rusting associated with unprotected steel.

Cooling performance depends on the complete tower design, including airflow, water distribution, fill, and ambient conditions. The fiberglass material supports the equipment’s physical construction; it does not independently determine heat-rejection capacity.

For cooling-tower projects, define the circulating-water flow, inlet and outlet temperatures, design wet-bulb temperature, and water quality. Supporting pipework and access components should also accommodate maintenance activities and the surrounding wet environment.

Desulfurization Wastewater and Plant Effluent Systems

At thermal power plants with wet flue gas desulfurization, wastewater handling presents a different duty from ordinary cooling-water service. Chlorides, suspended solids, treatment chemicals, and variations in temperature can influence material selection.

FRP tanks and piping can be considered for compatible collection, storage, and transfer stages within the treatment system. The specification should reflect the liquid handled at each stage rather than apply one material selection across the entire installation.

Where solids create abrasion or deposits, the internal construction and piping layout need additional consideration. Drain points, accessible connections, and cleaning provisions help keep the system maintainable.

Cable Routing Across Plant Service Areas

Power stations contain extensive networks of power, control, and instrumentation cables. Routes near cooling towers, water-treatment buildings, and outdoor utility areas may face humidity, chemical splash, and prolonged weather exposure.

FRP cable trays provide corrosion-resistant cable support for these locations. Tray dimensions should account for installed cable weight, required separation, bend radii, and future additions.

The installation should also preserve access to junction boxes, instruments, and cable replacement points. Covers, fixings, and support spacing must suit the route and environmental conditions.

Electrical insulation is a useful material characteristic, but a standard FRP tray is not a certified high-voltage protective barrier. Fire performance, electrical clearances, and the treatment of metallic accessories must follow the project’s electrical design requirements.

Plan Replacements Around Scheduled Outages

Power plant refurbishment often takes place within a fixed outage window. A replacement component must fit the existing installation and arrive with the information needed for assembly.

Before ordering replacement pipes, tanks, or cable-support components, confirm the actual site dimensions. Original drawings may not reflect later changes to equipment positions, supports, or connecting pipework.

An effective replacement package should establish:

• Connection dimensions: Flange drilling, pipe centerlines, nozzle orientation, and available clearances.

• Installation sequence: Removal access, lifting arrangements, and the order of assembly.

• Joint requirements: Preparation, assembly, curing where applicable, and inspection.

• Return-to-service checks: Testing, support verification, and acceptance documentation.

Resolving these details before delivery helps reduce unexpected cutting, connection changes, and installation delays.

Specify for Normal Operation and Plant Transients

Normal operating values are only part of the design basis. Shutdown, restart, draining, pump trips, and cleaning can expose components to different conditions.

For piping, identify maximum pressure, surge conditions, potential vacuum, and temperature changes. For tanks, include liquid density, filling and withdrawal rates, and venting requirements. For cable trays and structural supports, confirm operating loads, outdoor exposure, and fixing details.

Product documentation should correspond to the actual service. Relevant records may include material identification, dimensional inspection, pressure or leak testing where specified, and installation instructions. Agreeing on the required documents before production gives the project team a clear basis for inspection and acceptance.

Discuss Your Power Industry Project

Send Weitong FRP your system drawings, equipment list, operating conditions, and required delivery schedule. For refurbishment work, include site measurements, connection details, and the planned outage period.

We can review the required fiberglass products and prepare a quotation for your cooling-water, wastewater-treatment, or cable-management application.
